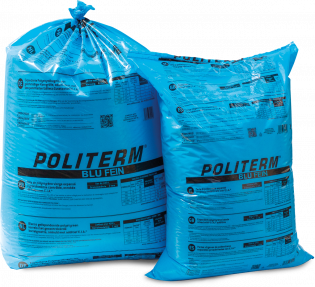

POLITERM® BLU FEIN

ULTRA-LIGHTWEIGHT THERMALLY INSULATING AGGREGATE, PRE-COATED WITH E.I.A. ADDITIVE. BEAD Ø ≤ 2 MM

POLITERM® BLU FEIN is the fine-bead version (Ø ≤ 0.079 in (≤ 2 mm)) of POLITERM® BLU, for lightweight thermally insulating subfloors and screeds made on site with cement and water. The fine bead gives a more homogeneous and compact mix and a smoother surface, while still weighing as little as a tenth of a traditional subfloor.

It is made of EPS beads coated with E.I.A. additive: the additive makes the beads mix perfectly with cement, stops them floating and spreads them evenly through the mix, at low and high densities alike. The result is a lightweight concrete that does not settle, does not shrink and does not crack. It is the only RAL-certified aggregate. It is the only product that makes self-leveling lightweight thermally insulating mortars possible.

With the same product you obtain densities from formula 110 (about 8.1 lb/ft³ (130 kg/m³), λD 0.29 BTU·in/(h·ft²·°F) (0.042 W/(m·K))) up to 112 lb/ft³ (1800 kg/m³) and 3,626 psi (25 N/mm²). It needs very little mixing water and dries quickly (about 2.5 days per inch (1 day per cm)).

It is mixed in a cement mixer or horizontal mixer and pumped with POLITERM® MACHINE, ISOLCAP MACHINE or screed pumps. Reaction to fire A2-s1,d0.

NOTE

Does not settle
No bleeding
Dimensionally stable
Non-shrink
No cracking
RAL certified

Closed-cell virgin EPS beads Ø ≤ 0.079 in (≤ 2 mm), coated with E.I.A. additive.
Formula 110: about 8.1 lb/ft³ (130 kg/m³), λD 0.29 BTU·in/(h·ft²·°F) (0.042 W/(m·K)), compressive strength 77 psi (0.528 N/mm²), μ 5.1.
Achievable densities 8.1-112 lb/ft³ (130-1800 kg/m³).
λD: 0.34 BTU·in/(h·ft²·°F) (0.0489 W/(m·K)) (150 kg/m³ mix) · 0.45 BTU·in/(h·ft²·°F) (0.065 W/(m·K)) (250) · 0.55 BTU·in/(h·ft²·°F) (0.079 W/(m·K)) (300) · 0.72 BTU·in/(h·ft²·°F) (0.104 W/(m·K)) (500) · 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)) (800) · 1.32 BTU·in/(h·ft²·°F) (0.191 W/(m·K)) (1000).
Compressive strength: 86 psi (0.59 N/mm²) (150) · 120 psi (0.83 N/mm²) (250) · 234 psi (1.61 N/mm²) (300) · 325 psi (2.24 N/mm²) (500) · ≥ 725 psi (≥ 5 N/mm²) (800) · ≥ 1,740 psi (≥ 12 N/mm²) (1200) · ≥ 3,626 psi (≥ 25 N/mm²) (1800).
μ 5.9-14.0; specific heat 1.0 kJ/kgK.
ΔLw 14 dB (2 in (5 cm) formula 250 + 2 in (5 cm) screed) · 26 dB (2 3/4 in (7 cm) formula 300 + DBRED FONOTECH 5); L'nT,w 61 dB (formula 250, 4 3/8 in (11 cm)).
Reaction to fire A2-s1,d0; rot-proof.
Cement: Portland 32.5 CEM I or CEM II limestone. Application 41 to 95 °F (+5 to +35 °C) (liquid antifreeze admixture allowed below 41 °F (+5 °C)).
Minimum thickness on absorbent substrates 2 in (5 cm).
Yield: 2 bags of 14.8 ft³ (420 L) or 5 bags of 6 ft³ (170 L) per 35 ft³ (1 m³) (up to 21.8 lb/ft³ (350 kg/m³)).

PACKAGING

Subfloors on ground and pilotis floors, between floors, on roofs and on timber floors.
Single-layer screeds for directly glued floor coverings (see the POLITERM® BLU application manual).
Slopes on terraces and flat roofs, also with direct laying of solvent-free waterproofing membranes.
Insulation of non-walkable attics and pitched roofs.
Vault infill, even at very high thicknesses.
Encapsulation of asbestos-cement roof sheets.
Fill beneath trafficable asphalt pavements.
Subfloors for industrial flooring.
