ARIETE 825 CE

PRE-MIXED, CE-MARKED, LIGHTWEIGHT, THERMALLY INSULATING SCREED. 51.5 lb/ft³ (825 kg/m3)

ARIETE 825 CE is a pre-mixed, CE-marked lightweight thermally insulating screed made of special hydraulic binders, selected aggregates and virgin EPS beads (Ø 0.079 in (2 mm)) coated with the E.I.A. additive. At 51.5 lb/ft³ (825 kg/m³) it weighs less than half as much as a sand-cement screed, cutting the load on the structure.

With C5-F1 strength it works as a single-layer screed: floor coverings are glued directly onto it, saving thickness and a whole working stage. Ceramic, stoneware and clinker can be laid after approx. 6 days, floating parquet after approx. 12 days (2 in (5 cm), 68 °F (+20 °C), 50% RH).

It also insulates: λD 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)) and an impact sound improvement of ΔLw 19 dB when combined with DBRED FONOTECH 5.

NOTE

Zero hygrometric shrinkage
No bleeding
Dimensionally stable
Ultra-low residual moisture
No cracking
RAL certified

Dry density: 51.5 lb/ft³ (825 kg/m³) (dry mortar approx. 50.9 lb/ft³ (815 kg/m³)).
Compressive strength: 725 psi (5.0 N/mm²) (C5); flexural strength: 145 psi (1.0 N/mm²) (F1) – UNI EN 13813.
Thermal conductivity λD: 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)) (UNI EN 12667).
Impact sound improvement ΔLw: 19 dB (UNI EN 12354-2; calculated with 2 in (5 cm) ARIETE 825 CE + DBRED FONOTECH 5).
Water vapor resistance μ: 14.0; specific heat: 1.0 kJ/kgK; rot-proof.
Reaction to fire: A2-s1,d0 (EN 13501-1).
Consumption: approx. 0.052 bags/ft² per inch of thickness (0.22 bags/m² per cm); mixing water 1.8-2.1 gal (7-8 L) per bag.
Minimum thickness on absorbent substrates: 2 in (5 cm).

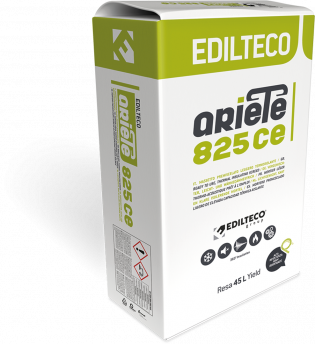

1.6 ft³ (45 L) bags; pallet of 40 bags (≈ 64 ft³ (≈ 1.8 m³)).

PACKAGING

Single-layer lightweight insulating screed for glued floor coverings: ceramic, stoneware, clinker, terracotta, parquet. Not suitable for direct laying of resilient coverings.
Glued parquet: smoothing with KRONOS AUTOLIV (min. 0.197 in (5 mm)) is mandatory.
Lightweight insulating leveling subfloor, with or without slopes.
Lightweight infill layers.
Roof insulation with direct laying of waterproofing membranes or solvent-free liquid-applied membranes.
Levels set with Piano Zero profiles; mixing by drill, cement mixer or Turbomalt-type mixer; pumping with Politerm® Machine, Isolcap Machine, plastering machine, truck mixer or Turbosol-type pump.
