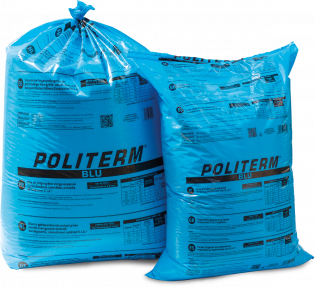

POLITERM® BLU

ULTRA-LIGHTWEIGHT THERMALLY INSULATING AGGREGATE, PRE-COATED WITH E.I.A. ADDITIVE. BEAD Ø 3-6 MM

POLITERM® BLU is Edilteco's ultra-lightweight aggregate for producing lightweight thermally insulating subfloors and screeds on site with just cement and water. It covers services, levels the slab, forms slopes and insulates, while weighing as little as a tenth of a traditional subfloor: the solution for new build and renovation, including timber floors and structures with limited capacity for additional loads.

It is made of EPS beads coated with E.I.A. additive: the additive makes the beads mix perfectly with cement, stops them floating and spreads them evenly through the mix, at low and high densities alike. The result is a lightweight concrete that does not settle, does not shrink and does not crack. It is the only RAL-certified aggregate.

With the same product you obtain densities from 9.4 to 112 lb/ft³ (150 to 1800 kg/m³): from maximum lightness (λD 0.34 BTU·in/(h·ft²·°F) (0.049 W/(m·K))) up to compressive strengths of 3,626 psi (25 N/mm²). Up to 21.8 lb/ft³ (350 kg/m³) you only need 2 bags of 14.8 ft³ (420 L), cement and water, no sand. It needs very little mixing water and dries quickly (about 2.5 days per inch of thickness (1 day per cm)).

It is mixed in a cement mixer or horizontal mixer and pumped to the floor with POLITERM® MACHINE, ISOLCAP MACHINE or screed pumps. It contributes to impact sound insulation (ΔLw up to 26 dB) and is class A2-s1,d0 for reaction to fire.

NOTE

Does not settle
No bleeding
Dimensionally stable
Non-shrink
No cracking
RAL certified

Closed-cell virgin EPS beads Ø 0.118 to 0.236 in (3-6 mm), coated with E.I.A. additive.
Achievable densities 9.4-112 lb/ft³ (150-1800 kg/m³) (up to 21.8 lb/ft³ (350 kg/m³) without sand).
λD: 0.34 BTU·in/(h·ft²·°F) (0.0489 W/(m·K)) (150 kg/m³ mix) · 0.45 BTU·in/(h·ft²·°F) (0.065 W/(m·K)) (250) · 0.55 BTU·in/(h·ft²·°F) (0.079 W/(m·K)) (300) · 0.72 BTU·in/(h·ft²·°F) (0.104 W/(m·K)) (500) · 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)) (800) · 1.32 BTU·in/(h·ft²·°F) (0.191 W/(m·K)) (1000).
Compressive strength: 86 psi (0.59 N/mm²) (150) · 120 psi (0.83 N/mm²) (250) · 234 psi (1.61 N/mm²) (300) · 325 psi (2.24 N/mm²) (500) · ≥ 725 psi (≥ 5 N/mm²) (800) · ≥ 1,740 psi (≥ 12 N/mm²) (1200) · ≥ 3,626 psi (≥ 25 N/mm²) (1800).
μ 5.9-14.0; specific heat 1.0 kJ/kgK.
ΔLw 14 dB (2 in (5 cm) formula 250 + 2 in (5 cm) screed) · 26 dB (2 3/4 in (7 cm) formula 300 + DBRED FONOTECH 5); L'nT,w 61 dB (formula 250, 4 3/8 in (11 cm)).
Reaction to fire A2-s1,d0; rot-proof.
Cement: Portland 32.5 CEM I or CEM II limestone. Application 41 to 95 °F (+5 to +35 °C) (liquid antifreeze admixture allowed below 41 °F (+5 °C)).
Minimum thickness on absorbent substrates 2 in (5 cm).
Yield: 2 bags of 14.8 ft³ (420 L) or 5 bags of 6 ft³ (170 L) per 35 ft³ (1 m³) (up to 21.8 lb/ft³ (350 kg/m³)).
Storage and delivery with the POLITAINER logistics system.

PACKAGING

Subfloors on ground and pilotis floors, between floors, on roofs and on timber floors.
Single-layer screeds for directly glued floor coverings (see the POLITERM® BLU application manual).
Slopes on terraces and flat roofs, also with direct laying of solvent-free waterproofing membranes.
Insulation of non-walkable attics and pitched roofs.
Vault infill, even at very high thicknesses.
Encapsulation of asbestos-cement roof sheets.
Fill beneath trafficable asphalt pavements.
Subfloors for industrial flooring.
