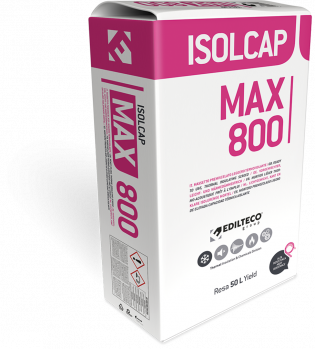

ISOLCAP MAX 800

PRE-MIXED, CE-MARKED, LIGHTWEIGHT, THERMALLY INSULATING SCREED. 49.9 lb/ft³ (800 kg/m3)

ISOLCAP MAX 800 is the CE-marked lightweight insulating screed of the ISOLCAP range: at 49.9 lb/ft³ (800 kg/m³) it guarantees a compressive strength of at least 725 psi (5 N/mm²) (class C5-F1 to UNI EN 13813) and replaces a traditional screed with a lighter and more insulating product. It is ideal as a single-layer screed under glued floors and wherever certified mechanical performance is required.

Made with EPS beads coated with E.I.A. additive and selected aggregates, it keeps a thermal conductivity of λD 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)). It does not settle, does not shrink and does not crack.

At 2 in (5 cm) thickness ceramic tiles can be laid after about 6 days and floating parquet after about 12 days. It can also be used as a 1.18 in (3 cm) fill layer under KRONOS or self-leveling screeds.

It is mixed with a drill and whisk, a cement mixer or a mixer, and pumped to the floor with POLITERM® MACHINE, ISOLCAP MACHINE, a properly fitted plastering machine or a truck mixer and concrete pump. With DBRED FONOTECH 5: ΔLw 19 dB. Reaction to fire A2-s1,d0.

NOTE

Zero hygrometric shrinkage
No bleeding
Dimensionally stable
No cracking
RAL certified
CE-marked

Dry density 49.9 lb/ft³ (800 kg/m³).
Thermal conductivity λD 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)) (UNI EN 12667).
Compressive strength ≥ 725 psi (≥ 5.0 N/mm²) (C5); flexural strength ≥ 145 psi (≥ 1.0 N/mm²) (F1) – UNI EN 13813.
μ 14.0.
ΔLw 19 dB (2 in (5 cm) + DBRED FONOTECH 5, calculated).
Reaction to fire A2-s1,d0; rot-proof.
Laying at 2 in (5 cm): ceramic after about 6 days, floating parquet after about 12 days.
Mixing water 2.1-2.4 gal (8-9 L) per bag.
Yield 19-20 bags per 35.3 ft³ (1 m³) (about 11 ft² (1 m²) at 2 in (5 cm) per bag); 1.8 ft³ (50 L) bag; pallet of 40 bags (about 71 ft³ (2.0 m³)).
Minimum thickness 2 in (5 cm).

PACKAGING

Single-layer lightweight screeds for floor coverings laid with adhesive (for glued parquet, a KRONOS AUTOLIV skim coat is mandatory).
Lightweight thermally insulating leveling screeds.
1.18 in (3 cm) fill layers under KRONOS or self-leveling screeds.
Roof insulation, suitable for direct laying of waterproofing membranes.
Not suitable for direct laying of resilient floor coverings.
