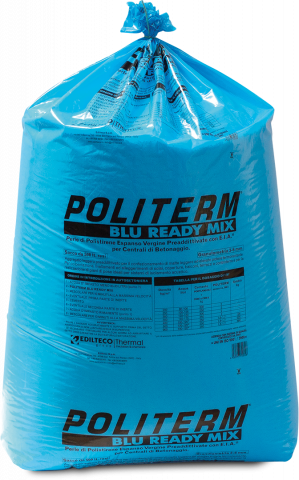

POLITERM® BLU READY MIX

ULTRA-LIGHTWEIGHT THERMALLY INSULATING AGGREGATE, PRE-COATED WITH E.I.A. ADDITIVE. BEAD Ø 3-6 MM

POLITERM® BLU READY MIX is the version of POLITERM® BLU designed for concrete batching plants: the lightweight concrete is prepared in a truck mixer and pumped to the floor with a concrete pump, for large sites and large surfaces.

It is made of EPS beads coated with E.I.A. additive: the additive makes the beads mix perfectly with cement, stops them floating and spreads them evenly through the mix, at low and high densities alike. The result is a lightweight concrete that does not settle, does not shrink and does not crack. It is the only RAL-certified aggregate. The beads carry a higher dosage of E.I.A. additive for mixing in the truck mixer.

35 ft³ (1 m³) of mortar up to 21.8 lb/ft³ (350 kg/m³) needs 31.1 ft³ (880 L) of aggregate (2 bags of 15.5 ft³ (440 L)). Order of loading: water, aggregate, mix 10 minutes, cement, mix 10 minutes. Minimum pumping density 15.6 lb/ft³ (250 kg/m³). Densities from 9.4 to 112 lb/ft³ (150 to 1800 kg/m³).

NOTE

Does not settle
No bleeding
Dimensionally stable
Non-shrink
No cracking
RAL certified

Closed-cell virgin EPS beads Ø 0.118 to 0.236 in (3-6 mm), coated with E.I.A. additive.
15.5 ft³ (440 L) bag; 31.1 ft³ (880 L) (2 bags) per 35 ft³ (1 m³) up to 21.8 lb/ft³ (350 kg/m³).
Minimum pumping density 15.6 lb/ft³ (250 kg/m³).
λD: 0.34 BTU·in/(h·ft²·°F) (0.0489 W/(m·K)) (150 kg/m³ mix) · 0.45 BTU·in/(h·ft²·°F) (0.065 W/(m·K)) (250) · 0.55 BTU·in/(h·ft²·°F) (0.079 W/(m·K)) (300) · 0.72 BTU·in/(h·ft²·°F) (0.104 W/(m·K)) (500) · 1.22 BTU·in/(h·ft²·°F) (0.176 W/(m·K)) (800) · 1.32 BTU·in/(h·ft²·°F) (0.191 W/(m·K)) (1000).
Compressive strength: 86 psi (0.59 N/mm²) (150) · 120 psi (0.83 N/mm²) (250) · 234 psi (1.61 N/mm²) (300) · 325 psi (2.24 N/mm²) (500) · ≥ 725 psi (≥ 5 N/mm²) (800) · ≥ 1,740 psi (≥ 12 N/mm²) (1200) · ≥ 3,626 psi (≥ 25 N/mm²) (1800).
μ 5.9-14.0; specific heat 1.0 kJ/kgK.
ΔLw 14 dB (2 in (5 cm) formula 250 + 2 in (5 cm) screed) · 26 dB (2 3/4 in (7 cm) formula 300 + DBRED FONOTECH 5); L'nT,w 61 dB (formula 250, 4 3/8 in (11 cm)).
Reaction to fire A2-s1,d0; rot-proof.
Cement: Portland 32.5 CEM I or CEM II limestone. Application 41 to 95 °F (+5 to +35 °C) (liquid antifreeze admixture allowed below 41 °F (+5 °C)).
Minimum thickness on absorbent substrates 2 in (5 cm).

PACKAGING

Subfloors on ground and pilotis floors, between floors, on roofs and on timber floors.
Single-layer screeds for directly glued floor coverings (see the POLITERM® BLU application manual).
Slopes on terraces and flat roofs, also with direct laying of solvent-free waterproofing membranes.
Insulation of non-walkable attics and pitched roofs.
Vault infill, even at very high thicknesses.
Encapsulation of asbestos-cement roof sheets.
Fill beneath trafficable asphalt pavements.
Subfloors for industrial flooring.
