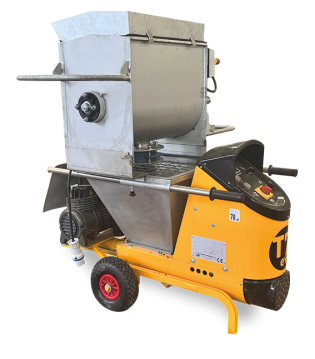

GUM GUM MACHINE

MIXING AND PUMPING SYSTEM FOR THE APPLICATION OF RUBBER-BASED MATERIAL FOR ACOUSTIC INSULATION

GUM GUM MACHINE is the mixing and spraying machine for GUM GUM SPRAY, the rubber-based compound that creates resilient impact sound layers on floors, stairs and walls. Simple, fast, clean and effective, it runs on a normal 220 V single-phase supply.

Light and easy to move on site, it mixes in its 13.2 gal (50 L) tank and sprays up to 131 ft (40 m) away and 49 ft (15 m) high at 508 psi (35 bar). It can also spray lightweight plasters such as ISOLTECO® 150 and 230 and self-leveling mortars.

NOTE

Electric motors: sprayer 2 hp (1.5 kW) - 220 V; mixing tank 1.5 hp (1.1 kW) - 220 V - 50 Hz (60 Hz version available on request).
Flow rate 0.13-3.2 gal/min (0.5-12 L/min)*; max grain size 0.197 in (5 mm); max pressure 508 psi (35 bar).
Stainless steel hoppers: sprayer 13.2 gal (50 L); mixing tank 13.2 gal (50 L) effective (18.5 gal (70 L) nominal).
Spray distance 131 ft (40 m)*; spray height 49 ft (15 m)*; loading height 47 1/4 in (120 cm); outlet nozzle Ø 1 in (25 mm).
Dimensions 47 1/4 × 23 5/8 × 48 in (1200 × 600 × 1220 mm); weight 529 lb (240 kg); compressor 7.4 CFM (210 L/min) (optional).
* Values depend on mix, pump wear, hose diameter and length; maximum height and distance are not reached simultaneously.

PACKAGING

Spraying of GUM GUM SPRAY impact sound layers on floors, stairs and walls.
Spraying of lightweight plasters (ISOLTECO® 150, ISOLTECO® 230) and self-leveling mortars.
