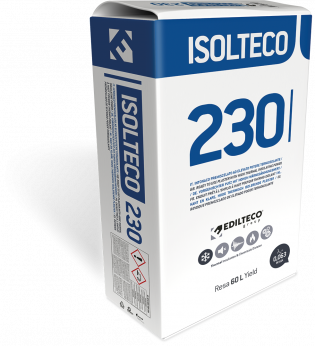

ISOLTECO® 230

PRE-MIXED PLASTER, PROVIDING EXCELLENT THERMAL INSULATION. 14.4 lb/ft³ (230 kg/m3)

ISOLTECO® 230 is the strongest plaster in the range (186 psi (1.28 N/mm²)): it insulates (λD 0.44 BTU·in/(h·ft²·°F) (0.063 W/(m·K))) and also improves the sound insulation of the wall (ΔRw 7 dB with 2 3/8 in (6 cm)). It is used on external walls, internal walls and ceilings and to correct thermal bridges.

Made with selected hydraulic binders and EPS beads coated with E.I.A. additive, it only needs water and is applied from 13/16 to 7 7/8 in (2 to 20 cm), indoors and outdoors: once cured it is unaffected by rain, moisture and temperature changes (capillary absorption W1), stays breathable (μ 9) and is class A2-s1,d0 for reaction to fire.

It can be applied by machine or by hand (about 2.4-2.6 gal (9-10 L) of water per bag). After at least 7 days it is skimmed with ECAP® ADP (0.157 to 0.197 in (4-5 mm)) and finished with breathable silicate or silicone paints or colored finishes from the ECAP® range, after ECAP® F primer. A fiberglass mesh (4.1 oz/yd² (140 g/m²)) in the skim coat is recommended to increase impact resistance.

NOTE

Dry density 14.4 lb/ft³ (230 kg/m³); bulk density of the dry mortar about 15.3 lb/ft³ (245 kg/m³).
Thermal conductivity λD 0.44 BTU·in/(h·ft²·°F) (0.063 W/(m·K)) (UNI EN 12667).
Compressive strength 186 psi (1.28 N/mm²); flexural strength 55 psi (0.38 N/mm²).
μ 9 (UNI EN 1015-19).
Rw 42 dB and ΔRw 7 dB (2 3/8 in (6 cm) on 3 1/8 in (8 cm) cellular blocks plastered on the opposite side).
Adhesion 15 psi (0.1 N/mm²) (UNI EN 1015-12); capillary absorption 0.1 kg/(m²·s^0.5), W1 (UNI EN 1015-18).
Reaction to fire A2-s1,d0 (EN 13501-1); specific heat 1.0 kJ/kgK; freeze/thaw durability assessed (UNI EN 998-1).
Thickness 13/16 to 7 7/8 in (2-20 cm): first coat about 13/32 in (1 cm), then coats up to 0.984 to 1.18 in (2.5-3 cm) after 4-24 h.
Application 41 to 95 °F (+5 to +35 °C), RH 45-80%; not in rain or frost.
Yield per bag: 32 ft² (3.00 m²) at 13/16 in (2 cm) · 16 ft² (1.50 m²) at 1 5/8 in (4 cm) · 11 ft² (1.00 m²) at 2 3/8 in (6 cm) · 9.3 ft² (0.86 m²) at 2 3/4 in (7 cm) · 6.5 ft² (0.60 m²) at 3 7/8 in (10 cm).
2.1 ft³ (60 L) bag; pallet of 44 bags. Mixing water (by hand) about 2.4-2.6 gal (9-10 L) per bag.
